Thin brick size guide
Face dimensions, thickness options, and corner profiles in one place.
American Imperial Flat
19 5/8” x 2 1/4” x 3/8”
Euro Imperial Flat
19 1/4” x 2” x 9/16”

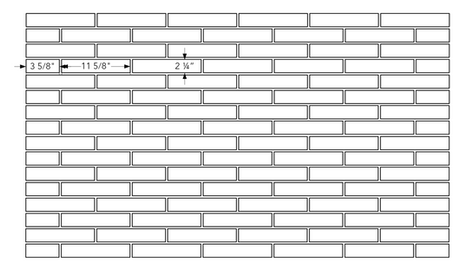

Norman Flat
11 5/8” x 2 1/4” x 9/16”
Modular Flat
7 5/8” x 2 1/4” x 9/16”

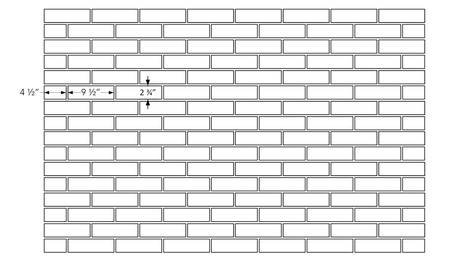

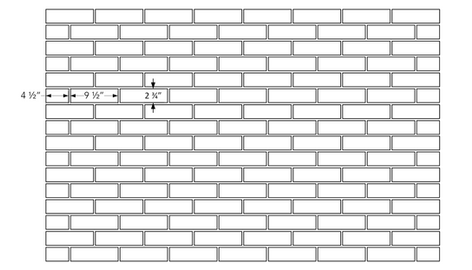

King 3/8" Flat
9 1/2” x 2 3/4” x 3/8”
King 9/16" Flat
9 1/2” x 2 3/4” x 9/16”
Ultra Speed Flat
9 7/8” x 2 1/2” x 3/8”
American Imperial Corner
9 5/8” x 4 5/8” x 2 1/4” x 9/16”
Euro Imperial Corner
9 1/2” x 4 1/2” x 2” x 9/16”
8" Corner
7 5/8” x 3 5/8” x 2 1/4” x 9/16”
10" Corner
9 5/8” x 3 5/8” x 2 1/4” x 9/16”
King 3/8" Corner
9 1/2” x 4 1/2” x 2 3/4” x 3/8”
King 9/16" Corner
9 1/2” x 4 1/2” x 2 3/4” x 9/16”
Ultra Speed Corner
9 7/8” x 4 3/4” x 2 1/2” x 3/8”
Textures
Smooth
Ultra Premium, Traditional, Glazed
Wirecut
Traditional
Smooth Glazed
Glazed
Quazi-Glazed
Ultra Premium, Traditional
Heritage
Traditional
Sanded
Traditional
Old World
Traditional
Edges
Rustic
Traditional
Chamfered
Ultra-Premium
Square
Ultra-Premium, Traditional, Glazed
Brick Back Structure
Ribbed
Modular, King
Scored
Modular, Norman, King, American Imperial, Euro Imperial
Achieve a refined “wild bond” with Imperial size thin brick using the five-row Bond Line™ pattern. The layout repeats every fourth row for balanced variation and no unwanted repetition.
How It Works:
-
Row 1: Install straight as your baseline.
-
Row 2: Offset each thin brick by ½ length.
-
Row 3: Offset by ¼ length.
-
Row 4: Offset ½ the length of Row 3.
Repeat Rows 1–4 for a cohesive, intentional “wild bond” façade.
